FJC-Z2148L Column-type Swing Gate
FJC-Z2148L
The FJC-Z2148L column-type intelligent swing gate is made of stainless steel, and is characterized with a beautiful appearance, firm structure, easy deployment, and durability. It can be selectively matched with various door access control devices, such as door access control managers, face recognition apparatuses, and fingerprint recognition apparatuses, to achieve the door access control function, and can also achieve some additional functions such as attendance and charging. It is applied to places where pedestrian flow control is required, such as gates, subways, stations, docks, clubs, and hotels, etc., to effectively manage and control pedestrian flow.
- Introduction
- Specifications
- Accessories
- Download
-
Solid Body
Made of 304 stainless steel, corrosion resistant, wear resistant, high temperature resistant, oxidation resistant, and durable.
DC Motor Driving
Brushless DC motor, digital drive, smooth speed regulation, automatic deceleration in place, and stopping slowly.
Diversified Access Rights
Selectively matched with a variety of door access control devices, expandable to access control authentication functions such as face recognition, card swiping, and QR code swiping.
Automatic Protection
When blocked by an external force, the bar will fall automatically and alarm to prevent device from damaging and personal injury.
Remote Control and Management
Unified external interface connected with other read-write device, to achieve remote control and management.
Unidirectional or Opposing Traffic

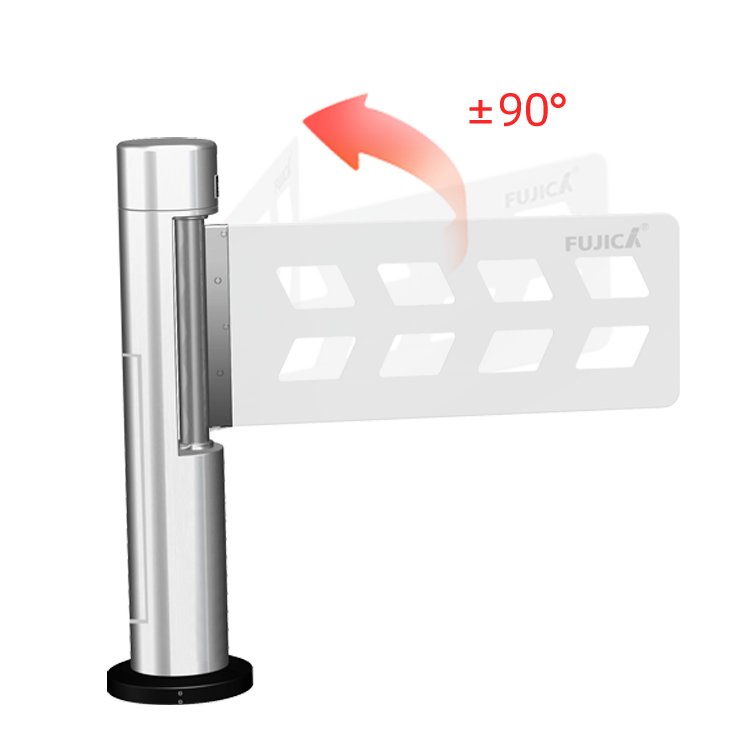

The Gate can be swinged by ±90°, and support one-way or two-way access.
-
Product Model
FJC-Z2148L
Body And Side Frame Material
304 stainless steel
Gate Material
Stainless steel or acrylic
Color
Stainless steel original color
Dimensions (φ*H)
168*980mm
Power Supply
AC220V±10% 50Hz
Device Power
Total power: 50W
Apperance Shape
Body: cylindrical. Gate: bent or rectangularly flat
Passing Speed
25 persons/minute
Swinging Angle
90°(one-way access) and ±90°(two-way access) optional
Input Interface
Switching value， 12V level signal (pulse width＞100ms)
Communication
RS485 or TCP/IP
Working Temperature
-30℃ to +70℃
Working Humidity
≤95%， no condensation
MCBF
≥3 million times
FJC-Z2148L Swing Gate Datasheet
969.9KB
